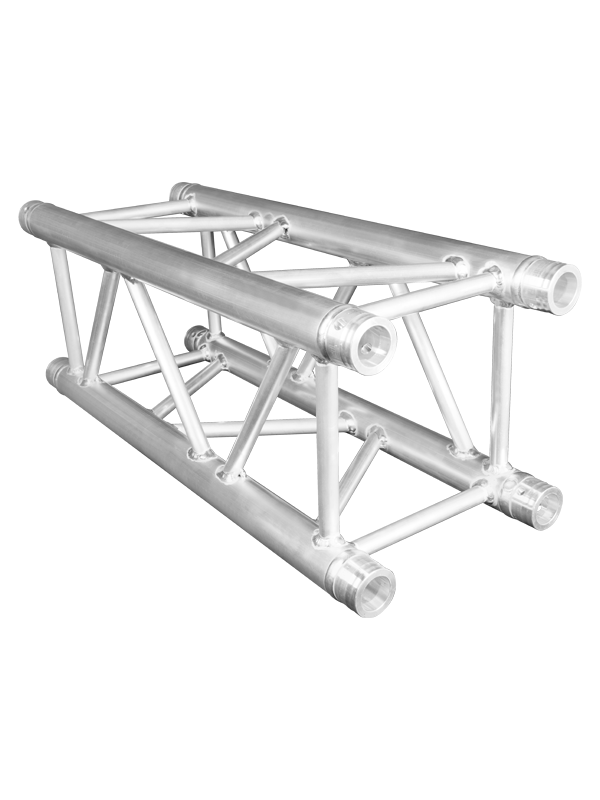

Straight Truss – 0.75m / 2.46ft

TRUSST® is comprised of modular aluminum components that combine to create nearly limitless configurations. Truss measuring 0.75 meters (2.46 ft) for a multitude of applications when used in combination with TRUSST® Corners, Base Plates, Accessories and Clamps.

TRUSST® CT-290 series 290 mm box truss is available in a variety of lengths from 0.25 m to 3 m (0.8 – 9.84 ft)) to suit most design demands. All TRUSST® sticks are TUV certified and all TRUSST® items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum. TRUSST® products use a standard conical connection system which allows for quick assembly while maintaining sound structural stability. TRUSST® works seamlessly with other major brands that utilize the same conical connection.

*includes Mexico & Canada

Spezifikationen

  • Gewicht:13.9 lb (6.3 kg)
  • Dimensions:11.42 x 11.42 in (290 x 290 mm)
  • Zulassungen:TUV, SLV
  • Length: 2.46 ft (0.75 m)
  • Outer diameter tube: 2 in (50 mm)
  • Diagonal bracing: 0.75 in (20 mm)
  • Wall thickness: 0.08 in (2 mm)

Im Lieferumfang enthalten

  • Straight Truss – 0.75m / 2.46ft
  • CT290-407S
  • CT-CONKIT
